Goulds 3700i API 610 (OH2) Overhung Process
Goulds 3610 API 610 (BB1) Horizontal Split Case, Double Suction
High temperature and high pressure process pumps designed to fully meet the requirements of API 610. Center line support for high temperature stability, maximum rigidity. Features tangential discharge for maximum hydraulic efficiency. Available in top suction design (Model 3710).
- Capacities to 1930 m³/h | 8,500 GPM
High temperature and high pressure process pumps designed to fully meet the requirements of API 610. Center line support for high temperature stability, maximum rigidity. Features tangential discharge for maximum hydraulic efficiency. Available in top suction design (Model 3710).
- Capacities to 1930 m³/h | 8,500 GPM
- Heads to 360 m | 1,200 ft
- Temperatures to 425° C | 800° F
- Pressures from full vacuum to 60 bar | 870 PSIG
Applications:
- Column Reflux
- Column Bottoms
- Reboiler
- Injection
- Fuel Blending
- Heat Transfer
- Slop Gas Oil Transfer
- Heavy Gas Oil
- Stripper Overhead
- Hot Oil
- Column Charge
- Reactor Feed
- Stabilizer Overhead
- Scrubber Circulation
- Tower Bottoms
- Offsite Hydrocarbon
Materials: All API materials, custom materials available
%20Horizontal%20Split%20Cas.png/:/cr=t:0%25,l:8.24%25,w:83.51%25,h:100%25/rs=w:365,h:274.4360902255639,cg:true)

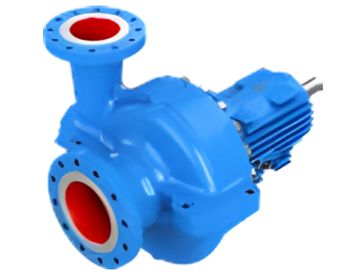

Goulds 3610 API 610 (BB1) Horizontal Split Case, Double Suction
Goulds 3610 API 610 (BB1) Horizontal Split Case, Double Suction
Designed for a wide range of industrial, municipal and marine services.
- Capacities to 11,355 m³/h | 50,000 GPM
- Heads to 215 m | 700 ft
- Temperatures to 205°C | 400°F
- Pressures to 42 bar | 600 PSIG
Applications:
- Petroleum refining, production, and distribution
- Petrochemical and demanding chemical processing
- High temperature applications including
Designed for a wide range of industrial, municipal and marine services.
- Capacities to 11,355 m³/h | 50,000 GPM
- Heads to 215 m | 700 ft
- Temperatures to 205°C | 400°F
- Pressures to 42 bar | 600 PSIG
Applications:
- Petroleum refining, production, and distribution
- Petrochemical and demanding chemical processing
- High temperature applications including boiler circulation
- General industrial requiring high temperature or high pressures
Materials: All API materials, custom
materials available
%20Single%20an.png/:/rs=w:365,h:274.4360902255639,cg:true,m/cr=w:365,h:274.4360902255639)

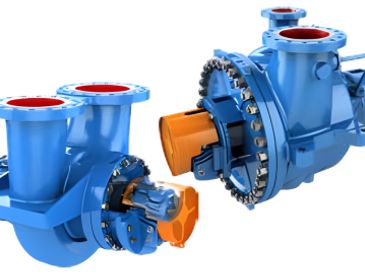

Goulds 3620i* and 3640i®* API 610 (BB2) Single and Two-Stage Between Bearings
Single and Two-Stage Between Bearings Between bearings, radially split process pumps designed for smooth, reliable operation. Fully meets requirements of API 610.
- Capacities to 4,540 m³/h | 20,000 GPM
- Heads to 455 m | 1,500 ft
- Temperatures to 455° C | 850° F
- Pressures to 70 bar | 1,000 PSIG
Applications:
- Refinery – Tower bottoms, process feed,
Single and Two-Stage Between Bearings Between bearings, radially split process pumps designed for smooth, reliable operation. Fully meets requirements of API 610.
- Capacities to 4,540 m³/h | 20,000 GPM
- Heads to 455 m | 1,500 ft
- Temperatures to 455° C | 850° F
- Pressures to 70 bar | 1,000 PSIG
Applications:
- Refinery – Tower bottoms, process feed, column reflux, circulation and pump around, process booster
- Power Plant – Boiler feed booster, boiler circulation, ash sluice
Materials: All API materials, custom materials available
%20Heavy%20Duty%20M.png/:/cr=t:0%25,l:8.24%25,w:83.51%25,h:100%25/rs=w:365,h:274.4360902255639,cg:true)

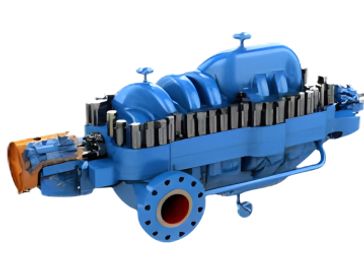

Goulds 3600 i-FRAME API 610 (BB3) Heavy Duty Multistage
Advanced design with proven operating history. Axially split, with many enhanced features that make it an extremely reliable, high performance pump well-suited to a wide range of services.
- Capacities to 1,930 m³/h | 8,500 GPM
- Heads to 2,740 m | 9,000 ft
- Temperatures to 205° C | 400° F
- Pressures to 275 bar | 4,000 PSIG
Applications:
- Refineries
- I
Advanced design with proven operating history. Axially split, with many enhanced features that make it an extremely reliable, high performance pump well-suited to a wide range of services.
- Capacities to 1,930 m³/h | 8,500 GPM
- Heads to 2,740 m | 9,000 ft
- Temperatures to 205° C | 400° F
- Pressures to 275 bar | 4,000 PSIG
Applications:
- Refineries
- Injection offshore platforms
- Pipeline
- Boiler feed
- Descaling
- Mine dewatering
- Process transfer
- Desalination
- Water injection
- CO² injection
Materials: All API materials, custom materials available
Goulds 3171 Vertical Sump and Process
Goulds 3171 Vertical Sump and Process
The “Veteran” vertical sump and process pump. Thousands of installations – industrial process, sump drainage, corrosive liquids, pollution control, molten sulfur. Rugged, heavy construction. Simple mounting.
- Capacities to 722 m³/h | 3,180 GPM
- Heads to 95 m | 344 ft
- Temperatures to 232° C | 450° F
- Pit Depths to 6 m | 20 ft
Applications:
- Industr
The “Veteran” vertical sump and process pump. Thousands of installations – industrial process, sump drainage, corrosive liquids, pollution control, molten sulfur. Rugged, heavy construction. Simple mounting.
- Capacities to 722 m³/h | 3,180 GPM
- Heads to 95 m | 344 ft
- Temperatures to 232° C | 450° F
- Pit Depths to 6 m | 20 ft
Applications:
- Industrial Process
- Industrial Sump Wastes
- Molten Sulfur
- Tank Unloading
- Corrosive and Non-CorrosiveLiquids
Materials: Cast Iron, Bronze-fitted, Carbon Steel, 316SS, Alloy 20, Hastelloy B and C, Duplex SS
