Pulp and Paper Industries

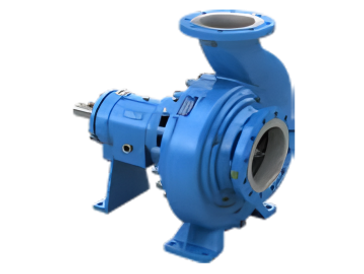

Goulds 3180 / 3185* Paper Stock / Process
All customer requirements were con sider ed in this line of paper stock / process pumps: excellent hydraulic coverage, high efficiency, extreme ease of maintenance, and mechanical reliability. The Model 3185 pump furnished with ISO or JIS flange drilling, metric fasteners, dimensions. Open, enclosed or Shearpeller™ impellers available. Fe
All customer requirements were con sider ed in this line of paper stock / process pumps: excellent hydraulic coverage, high efficiency, extreme ease of maintenance, and mechanical reliability. The Model 3185 pump furnished with ISO or JIS flange drilling, metric fasteners, dimensions. Open, enclosed or Shearpeller™ impellers available. Features i-ALERT® 2 condition monitoring as standard. Model 3180 standard with ANSI flanges.
3180
- Capacities to 9,000 m³/h | 40,000 GPM
- Heads to 125 m | 410 ft
- Temperatures to 230° C | 446° F
- Pressures to 16 bar | 232 PSIG
3185 with Metric standards
- Capacities to 6,000 m³/h | 26,000 GPM
- Heads to 125 m | 410 ft
- Temperatures to 230°C | 446°F
- Pressures to 16 bar | 232 PSIG
Applications:
- Paper Stock
- Black Liquor
- Chemical Process
- Wastewater
Materials: AI/CD4MCuN, CD4MCuN, 316SS, 317SS, Hast-C, Alloy 20, Super Duplex. Other materials available upon request.
%20Vertical%20Turbine.png/:/rs=w:365,h:274.4360902255639,cg:true,m/cr=w:365,h:274.4360902255639)
Goulds VIT (VS1) Vertical Turbine
A wide range of hydraulic conditions allows meeting requirements of virtually every pumping service. Designed to meet custom specifications of the user. Model VIT can-type turbine meets API 610 specifications.
- Capacities to 15,900 m3/h |70,000 GPM
- Heads to 1,067 m | 3,500 ft
- Pressures to 176 kg/cm2 | 2,500 psi
- Bowl sizes from 152.4 mm to 1,40
A wide range of hydraulic conditions allows meeting requirements of virtually every pumping service. Designed to meet custom specifications of the user. Model VIT can-type turbine meets API 610 specifications.
- Capacities to 15,900 m3/h |70,000 GPM
- Heads to 1,067 m | 3,500 ft
- Pressures to 176 kg/cm2 | 2,500 psi
- Bowl sizes from 152.4 mm to 1,400 mm | 6” to 55”
- Temperatures to 204°C | 400° F
- Horsepower to 3,730 KW | 5,000 HP
Applications:
- Cooling Water
- Seawater & River Water Intake
- Industrial Process Pumps
- Utility Circulating Water
- Condenser Circulating Water Pumps
- Fire Service
- Reclaimed Water
Materials: Any Machinable Alloy
%20Vertical%20Can-Type.png/:/rs=w:365,h:274.4360902255639,cg:true,m/cr=w:365,h:274.4360902255639)

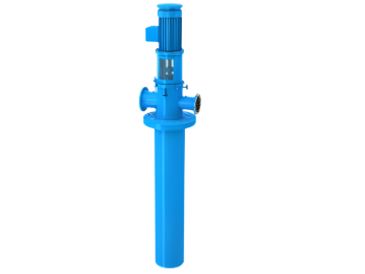

Goulds VIC (VS6) Vertical Can-Type
Goulds VIC (VS6) Vertical Can-Type
A wide range of hydraulic conditions allows meeting requirements of virtually every pumping service. Designed to meet custom specifications of the user. Model VIC can-type turbine meets API 610 specifications.
- Capacities to 15,900 m3/h | 70,000 GPM
- Heads to 1,067 m | 3,500 ft
- Pressures to 176 kg/cm2 | 2,500 psi
- Bowl sizes from 152.4 mm to 1,
A wide range of hydraulic conditions allows meeting requirements of virtually every pumping service. Designed to meet custom specifications of the user. Model VIC can-type turbine meets API 610 specifications.
- Capacities to 15,900 m3/h | 70,000 GPM
- Heads to 1,067 m | 3,500 ft
- Pressures to 176 kg/cm2 | 2,500 psi
- Bowl sizes from 152.4 mm to 1,400 mm | 6” to 55”
- Temperatures to 204°C | 400° F
- Horsepower to 3730 KW | 5,000 HP
Applications:
- Pipeline Booster
- Product Transfer, Refinery Blending
- Injection-Secondary Recovery
- Chemical Transfer
- Boiler Feed
- Condensate
- Cryogenics
- LNG Transfer
- Light Hydrobarbons
- Water Services
Materials: Any Machinable Alloy
