SEALED LINED & NON METALLIC

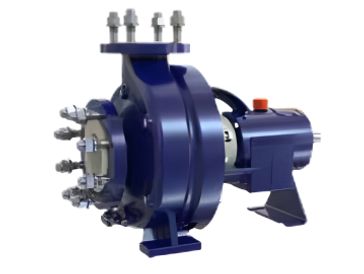

Rheinhütte CPDR Standardized chemical pump in plastic
Rheinhütte FNP Standardized chemical pump with PFA-Lining
Rheinhütte FNP Standardized chemical pump with PFA-Lining
Pumps of the CPDR and CPRF type family are horizontal, single-stage, end-suction, top-discharge centrifugal pumps, standardized to EN 22858 (formerly DIN 24256; ISO 2858, NF 44-121, BS 5257 and ISO 5199). The installation length of type CPRF is simply longer about the channel width so that a free passage for the fluid is given. The pumps
Pumps of the CPDR and CPRF type family are horizontal, single-stage, end-suction, top-discharge centrifugal pumps, standardized to EN 22858 (formerly DIN 24256; ISO 2858, NF 44-121, BS 5257 and ISO 5199). The installation length of type CPRF is simply longer about the channel width so that a free passage for the fluid is given. The pumps are used for handling chemically aggressive and/or inflammable liquids within the wide field of chemical processing and environmental technology. The CPDR with open impeller is foreseen for clean liquids and fluids with a small content of solids. The CPRF (Free Flow) is able to handle fluids with larger solids. Both types are possible in close-coupled design instead of bearing block.
- Capacities to 200 m³/h | 880 GPM
- Heads to 100 m | 328 ft
- Temperature ranges from -40 °C to 190 °C | -40 °F to 374 °F
- Pressures to 16 bar | 232 PSIG
Applications:
- Brine
- Chemical Wastewater
- Chloralkali
- Flue gas scrubbers
- Waste incineration plants
- Hydrochloric acid
- Sea water
- Steel industry
- Sulphuric acid
Materials:
- PP
- PE 1000
- PE 1000R
- PVDF
- PTFE

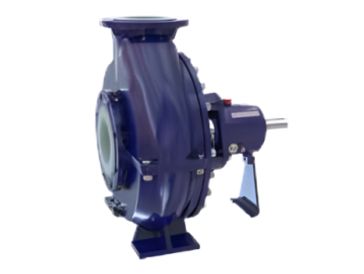

Rheinhütte FNP Standardized chemical pump with PFA-Lining
Rheinhütte FNP Standardized chemical pump with PFA-Lining
Rheinhütte FNP Standardized chemical pump with PFA-Lining
The standard chemical pump FNP is universally applicable in the chemical and pharmaceutical industry, in petrochemistry and general process engineering for pumping chemically aggressive and corrosive media.
- Capacities to 70 m³/h | 308 GPM
- Heads to 95 m | 312 ft
- Temperature ranges from -30 °C to 190 °C | -22 °F to 374 °F
- Pressures to 16 bar |
The standard chemical pump FNP is universally applicable in the chemical and pharmaceutical industry, in petrochemistry and general process engineering for pumping chemically aggressive and corrosive media.
- Capacities to 70 m³/h | 308 GPM
- Heads to 95 m | 312 ft
- Temperature ranges from -30 °C to 190 °C | -22 °F to 374 °F
- Pressures to 16 bar | 232 PSIG
Applications:
- Hot Acids
- Acetic Acid
- Chlorinated Solvents
- Chloroform
- Acetone
- Hydrofluoric Acid
- Sodium Hypochlorite
- Nitric Acid
- Amines
- Chlorine Dioxide
- Flue gas scrubber
- Steel Industry
- Waste plants
- Incineration
Materials:
- PFA
Rheinhütte FNC Standardized chemical pump in ceramic
Rheinhütte FNC Standardized chemical pump in ceramic
Rheinhütte FNC Standardized chemical pump in ceramic
Pumps of the FNC are horizontal, single-stage, end suction, top-discharge centrifugal pumps, standardized to ISO 2858 and ISO 5199. The wear resistance and universal chemical resistance offers great advantages for use in corrosive and abrasive media. FNC pumps are used for handling chemically aggressive and/or abrasive liquids within the
Pumps of the FNC are horizontal, single-stage, end suction, top-discharge centrifugal pumps, standardized to ISO 2858 and ISO 5199. The wear resistance and universal chemical resistance offers great advantages for use in corrosive and abrasive media. FNC pumps are used for handling chemically aggressive and/or abrasive liquids within the wide field of chemical processing and environmental technology.
- Capacities to 600 m³/h | 2642 GPM
- Heads to 90 m | 295 ft
- Temperature ranges from -40 °C to 120 °C | -40 °F to 248 °F
- Pressures to 10 bar | 145 PSIG
Applications:
- Chemical Industry
- Solids-containing fluids
- Titanium dioxide
Materials:
- FRIKORUND
Rheinhütte FGP Liquid ring vacuum pump in ceramic
Rheinhütte FNC Standardized chemical pump in ceramic
Rheinhütte FNC Standardized chemical pump in ceramic
Our FGP liquid ring pump is the suitable partner for difficult evacuation and compression processes involving gases and vapours in all corrosion-critical areas of application in the chemical industry. Together with the freely selectable operating medium of the liquid ring, the FGP allows volume flows of up to 700 m³/h. In compressor mod
Our FGP liquid ring pump is the suitable partner for difficult evacuation and compression processes involving gases and vapours in all corrosion-critical areas of application in the chemical industry. Together with the freely selectable operating medium of the liquid ring, the FGP allows volume flows of up to 700 m³/h. In compressor mode gas pressures of up to p2 max = 2.5 barg are easily created. In vacuumode for aggressive media the pump produces suction pressures of p1 = 100 mbara up to p1 = 25 mbara with an additional gas ejector. And this all takes place at gas temperatures of up to 100 °C. The highly corrosion-resistant technical ceramic is perfectly suitable for all media containing chlorine and hydrogen chloride.
- Capacities to 700 m³/h | 3082 GPM
- Temperature ranges from -20 °C to 100 °C | -4 °F to 212 °F
Applications:
- Caustic gases
- Chemical industry
- Chlorine gas
Materials:
- FRIKORUND
