Rheinhutte pumpen
Rheinhütte RCE Heavy Duty Chemical Centrifugal Pump in Metal
Rheinhütte RCE Heavy Duty Chemical Centrifugal Pump in Metal
Rheinhütte RCE Heavy Duty Chemical Centrifugal Pump in Metal
The RCE is a horizontal single-stage, end-suction, top-discharge, centrifugal pump with heavy duty bolted-down bearing pedestal. The sturdy design with front and back vanes on the impeller is primarily intended to fulfill very specific requirements as a standard chemical pump.
As a product-related special version, the RCE is the first choi
The RCE is a horizontal single-stage, end-suction, top-discharge, centrifugal pump with heavy duty bolted-down bearing pedestal. The sturdy design with front and back vanes on the impeller is primarily intended to fulfill very specific requirements as a standard chemical pump.
As a product-related special version, the RCE is the first choice in the chemical industry, the basic industry - especially in fertilizer production - environmental technology and many other industrial sectors.
It pumps organic and inorganic as well as aggressive liquids with high solid contents and is particularly suitable for hot media up to 450 degrees. Examples of applications include ammonium nitrate, molten sulphur, phosphoric acid, tar, pitch, urea melt, caustic soda, water glass, mash and cataphoretic paints. A special option of this series is the hydrodynamic shaft seal.
- Capacities to 1200 m³/h | 5283 GPM
- Heads to 180 m | 591 ft
- Temperature ranges from -40 °C to 450 °C | -40 °F to 842 °F
- Pressures to 16 bar | 232 PSIG
Applications:
- Phosphate fertilizer
- Ammonium nitrate melt
- Pitch and Tar
- Urea melt
- Molten Suphur
- Aggressive Slurries
Materials: 12 different cast irons, cast steels, Nickel based materials and high alloy cast steels

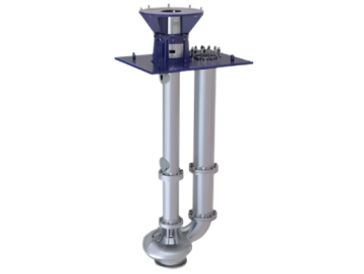

Rheinhütte GVSO Vertical chemical centrifugal pump in metal
Rheinhütte RCE Heavy Duty Chemical Centrifugal Pump in Metal
Rheinhütte RCE Heavy Duty Chemical Centrifugal Pump in Metal
28 basic sizes in a single-stage or multi-stage design allow maximum flexibility even during the planning stage. This means that the GVSO covers volume flows of up to 4.000 m³/h and pumping heights of up to 150 m. Individual immersion depth adjustment from 0.5 to 17,5 m through the use of one or more intermediate bearings completes the ma
28 basic sizes in a single-stage or multi-stage design allow maximum flexibility even during the planning stage. This means that the GVSO covers volume flows of up to 4.000 m³/h and pumping heights of up to 150 m. Individual immersion depth adjustment from 0.5 to 17,5 m through the use of one or more intermediate bearings completes the maximum level of flexibility. At the customer‘s request, the connecting dimensions and the shape of the sole plate can be individually adapted to the container and pressure flange. If constant temperatures and viscosities are required, e.g. in the case of molten sulfur, the GVSO is also available as a heated version. Here we offer a customized heating jacket system for steam and other heat transfer media. Only two additional connections for feed and discharge are required here.
- Capacities to 4000 m3/h | 17612 GPM
- Heads to 150 m | 492 ft
- Temperatures to from -40 °C to 600 °C | -40 °F to 1112 °F
- Pressures to 40 bar | 580 PSIG
Applications: Aggressive, also contaminated fluids, liquefied gases and melts like e.g. sulphuric acid at all concentrations, oleum, molten sulfur, Phthalic acid and molten salts
Materials:
- 1.0619 (A 216 Grade WCA / WCB)
- 1.4136S (Rheinhütte material)
- 1.4306S (A 743 CF-3 (Type 304L))
- 1.4408 (A 743 CF-8M (Type 316))
- 1.4517 (A890 Grade 1B / A743 Gr. CD4MCuN)
- 1.4529S (A 743 CN3MN (AL-6 XN))
- 1.4581 (A 743 CF-8M (+Nb) / A 351 CF10MC (Type 316Cb)
- 1.7357 (A 217 Grade WC6)
- R30.20 (A 743 CN7M (Alloy 20))
- RH-SX (alloy SX)
Rheinhütte GVRN Acid Vertical chemical centrifugal pump.
Rheinhütte RCE Heavy Duty Chemical Centrifugal Pump in Metal
Rheinhütte RK Vertical chemical centrifugal pump in metal
The GVRN vertical centrifugal pump has been specially designed for use in modern sulphuric acid plants covers most demanding applications in this area. The high-alloyed material is particularly suitable for hot and highly concentrated acids. The thick-walled cast material ensures long pump service life. The compact design allows easy adap
The GVRN vertical centrifugal pump has been specially designed for use in modern sulphuric acid plants covers most demanding applications in this area. The high-alloyed material is particularly suitable for hot and highly concentrated acids. The thick-walled cast material ensures long pump service life. The compact design allows easy adaptation to existing system dimensions.
Special designs: wet design as well dry installation design.
- Capacities to 4000 m³/h | 17612 GPM
- Heads to 85 m | 279 ft
- Temperature ranges from -40 °C to 250 °C | -40 °F to 482 °F
- Pressures to 10 bar | 145 PSIG
Applications:
- HRS (Heat recovery system) Hot Sulfuric Acid
- Concentrated Sulphuric Acid
Materials:
- 1.4136S (Rheinhütte material)
- RH-RS (Rheinhütte material)
Rheinhütte RK Vertical chemical centrifugal pump in metal
Rheinhütte RK Vertical chemical centrifugal pump in metal
Rheinhütte RK Vertical chemical centrifugal pump in metal
Vertical centrifugal pumps type RK are normally designed for open vessels/pits, to drain these objects rotational. This type of pump is not suitable for continuous operation or process operation. RK pumps are used for handling chemically aggressive media, contaminated liquids with solids up to a maximum grain size of 8 mm.
- Capacities to 56
Vertical centrifugal pumps type RK are normally designed for open vessels/pits, to drain these objects rotational. This type of pump is not suitable for continuous operation or process operation. RK pumps are used for handling chemically aggressive media, contaminated liquids with solids up to a maximum grain size of 8 mm.
- Capacities to 56 m³/h | 247 GPM
- Heads to 55 m | 180 ft
- Temperature ranges from -40 °C to 100 °C | -40 °F to 212 °F
- Pressures to 10 bar | 145 PSIG
Applications: Chemically aggressive media, contaminated liquids with solids up to a maximum grain size of 8 mm.
Materials:
- 1.4408 (A 743 CF-8M (Type 316))
Rheinhütte RVKu Chemical centrifugal pump in plastic
Rheinhütte RK Vertical chemical centrifugal pump in metal
Rheinhütte RVKu Chemical centrifugal pump in plastic
The vertical centrifugal pump RVKu is specially designed for pumping aggressive, slightly contaminated media such as acids, alkalis and chemical waste water. The closed impeller design with long axial throttle gaps allows immersion depths of up to 3m at operating temperatures of 80°C. Smooth running of the shaft is ensured by the use of a
The vertical centrifugal pump RVKu is specially designed for pumping aggressive, slightly contaminated media such as acids, alkalis and chemical waste water. The closed impeller design with long axial throttle gaps allows immersion depths of up to 3m at operating temperatures of 80°C. Smooth running of the shaft is ensured by the use of a ball joint bearing located outside the aggressive zone as well as an immersion plain bearing made of SIC, carbon or ceramic.
- Capacities to 1000 m³/h | 4403 GPM
- Heads to 70 m | 230 ft
- Temperature ranges from -40 °C to 90 °C | -40 °F to 194 °F
- Pressures to 10 bar | 145 PSIG
Applications:
- Pickling
- Chemical wastewater
- Sulphuric acid (H2SO4)
- Surface treatment
- Hydrochloric acid (HCl)
- Fertilizer
- Plastic Production
- Functional media
- Dyes and Pigments
- Salts
- Metal Production
- Organics
- Nitric acid (HNO3)
- Flue gas scrubber
- Steel Industry
- Wasteplants
- Incineration
Materials:
- PP
- PE 1000
- PVDF
