Chemical Industries

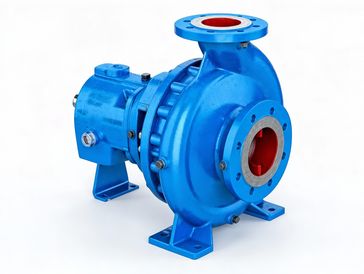

Goulds IC i-FRAME ISO Process
Goulds ICM ISO Metallic Magnetic Drive Process
Goulds 3171 Vertical Sump and Process
This series is designed in accordance with ISO 5199 and ISO 2858, making it ideal for worldwide chemical or industrial process applications. IC pumps are fitted with a patented seal chamber design called the Cyclone seal chamber, which has been proven to provide the optimum sealing environment for extended mechanical seal life. Optional i
This series is designed in accordance with ISO 5199 and ISO 2858, making it ideal for worldwide chemical or industrial process applications. IC pumps are fitted with a patented seal chamber design called the Cyclone seal chamber, which has been proven to provide the optimum sealing environment for extended mechanical seal life. Optional inducer reduces NPSHr.
- Capacities to 450 m³/h |1,980 GPM
- Heads to 160 m | 525 ft
- Temperature ranges from -40° C to 280°C | -40° F to 530˚ F
- Pressures to 25 bar | 360 PSIG
Applications:
- Chemical
- Petrochemical
- Pulp & Paper
- Primary Metals
- Food & Beverage
- General Industries
Materials: Ductile Iron, Carbon Steel, 316SS, Duplex SS, Alloy 20, Hastelloy C, Titanium
Goulds 3171 Vertical Sump and Process
Goulds ICM ISO Metallic Magnetic Drive Process
Goulds 3171 Vertical Sump and Process
The “Veteran” vertical sump
and process pump. Thousands of
installations – industrial process, sump
drainage, corrosive liquids, pollution control,
molten sulfur. Rugged, heavy construction.
Simple mounting.
- Capacities to 722 m³/h | 3,180 GPM
- Heads to 95 m | 344 ft
- Temperatures to 232° C | 450° F
- Pit Depths to 6 m | 20 ft
Applications:
- Industr
The “Veteran” vertical sump
and process pump. Thousands of
installations – industrial process, sump
drainage, corrosive liquids, pollution control,
molten sulfur. Rugged, heavy construction.
Simple mounting.
- Capacities to 722 m³/h | 3,180 GPM
- Heads to 95 m | 344 ft
- Temperatures to 232° C | 450° F
- Pit Depths to 6 m | 20 ft
Applications:
- Industrial Process
- Industrial Sump Wastes
- Molten Sulfur
- Tank Unloading
- Corrosive & Non-CorrosiveLiquids
Materials: Cast Iron, Bronze-fitted, Carbon
Steel, 316SS, Alloy 20, Hastelloy B and C, Duplex SS

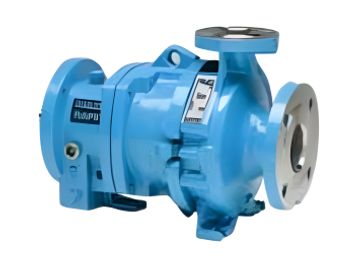

Goulds ICM ISO Metallic Magnetic Drive Process
Goulds ICM ISO Metallic Magnetic Drive Process
Goulds ICM ISO Metallic Magnetic Drive Process
The ICM pump is the optimum metallic sealless pump for process fluid services in the chemical, paper and general industries where ISO dimensions are preferred. The ICM is specifically designed to pump difficult fluids such as corrosives, high purity and toxic liquids. Its sealless, sturdy design combines with a wide variety of wet end mat
The ICM pump is the optimum metallic sealless pump for process fluid services in the chemical, paper and general industries where ISO dimensions are preferred. The ICM is specifically designed to pump difficult fluids such as corrosives, high purity and toxic liquids. Its sealless, sturdy design combines with a wide variety of wet end materials. The bearings are chemical and abrasion resistant Silicon Carbide (SSiC). Optional Dryguard™ dry-run protection can be provided.
- Capacities to 400 m³/h | 1,760 GPM
- Heads to 210 m | 685 ft at 3,500 rpm
- Temperature ranges from -40° C to 180° C | -40° F to 360° F
- Pressures to 16 bar | 232 PSIG
Applications:
- Batch Chemical Process
- Rail Car or Tank Unloading
- Specialty Chemicals
Materials: Stainless Steel, Hastelloy,
Ductile Iron, Alloy 20
Goulds 3298 Magnetic Drive ANSI Lined
Goulds 3296 EZMAG Magnetic Drive ANSI Process
Goulds ICM ISO Metallic Magnetic Drive Process
Designed to handle moderate to severe corrosives with or without solids. Sealless design provides effective alternative to pumps with mechanical seal problems. Thick linings for extended pump life.
- Capacities to 270 m³/h | 1,200 GPM
- Heads to 162 m | 500 ft
- Temperatures to 121°C | 250° F
- Pressures to 16 bar | 225 PSIG
Applications:
- Rail Car or T
Designed to handle moderate to severe corrosives with or without solids. Sealless design provides effective alternative to pumps with mechanical seal problems. Thick linings for extended pump life.
- Capacities to 270 m³/h | 1,200 GPM
- Heads to 162 m | 500 ft
- Temperatures to 121°C | 250° F
- Pressures to 16 bar | 225 PSIG
Applications:
- Rail Car or Tank Unloading
- Batch Chemical Process
- Specialty Chemicals
- Column Reflux or Bottoms
- Reactor Feed
Lining Material: ETFE

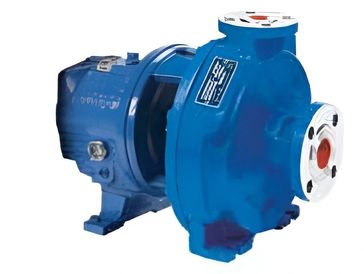

Goulds 3296 EZMAG Magnetic Drive ANSI Process
Goulds 3296 EZMAG Magnetic Drive ANSI Process
Goulds 3296 EZMAG Magnetic Drive ANSI Process
Robust, simple sealless design ideal for difficult liquids such as corrosives, pollutants, ultra-pure liquids and toxics. Meets ANSI imensional specifications. Features a bearing cartridge for ease of maintenance and improved reliability.
- Capacities up to 159 m³/h | 700 GPM
- Heads to 213 m | 700 ft
- Temperatures to 280° C | 535° F
- Pressures to
Robust, simple sealless design ideal for difficult liquids such as corrosives, pollutants, ultra-pure liquids and toxics. Meets ANSI imensional specifications. Features a bearing cartridge for ease of maintenance and improved reliability.
- Capacities up to 159 m³/h | 700 GPM
- Heads to 213 m | 700 ft
- Temperatures to 280° C | 535° F
- Pressures to 19 bar | 275 PSIG
Applications:
- Batch Chemical Process
- Rail Car or Tank Unloading
- Specialty Chemicals
Materials: 316SS, others upon request
Goulds 3196 i-FRAME ANSI Process
Goulds 3296 EZMAG Magnetic Drive ANSI Process
Goulds 3296 EZMAG Magnetic Drive ANSI Process
This is the original ANSI pump that has become the standard of the industry. Over 1,000,000 installations attest to the remarkable performance of the 3196. Available with a wide range of features for handling difficult applications. i-FRAME® power ends maximize reliability and MTBF (Mean Time Between Failure).
- Capacities to 1,364 m³/h | 7,
This is the original ANSI pump that has become the standard of the industry. Over 1,000,000 installations attest to the remarkable performance of the 3196. Available with a wide range of features for handling difficult applications. i-FRAME® power ends maximize reliability and MTBF (Mean Time Between Failure).
- Capacities to 1,364 m³/h | 7,000 GPM
- Heads to 223 m | 730 ft
- Temperatures to 371° C | 700° F
- Pressures to 26 bar | 375 PSIG
Applications:
- Chemical
- Petrochemical
- Pulp & Paper
- Primary Metals
- Food & Beverage
- General Industries
Materials: Ductile Iron, 316SS, CD4MCu, Alloy 20, Monel, Nickel, Hastelloy B and C, Titanium
Goulds LF 3196 i-FRAME Low Flow ANSI Process
Goulds LF 3196 i-FRAME Low Flow ANSI Process
Goulds LF 3196 i-FRAME Low Flow ANSI Process
Designed specifically to provide superior performance for low flow services. Features a concentric (circular volute) casing and open radial vane impeller to eliminate hydraulic and mechanical problems at low flows. Includes power ends.
- Capacities to 50 m³/h | 220 GPM
- Heads to 282 m | 925 ft
- Temperatures to 371° C | 700° F
- Pressures to 31 bar
Designed specifically to provide superior performance for low flow services. Features a concentric (circular volute) casing and open radial vane impeller to eliminate hydraulic and mechanical problems at low flows. Includes power ends.
- Capacities to 50 m³/h | 220 GPM
- Heads to 282 m | 925 ft
- Temperatures to 371° C | 700° F
- Pressures to 31 bar | 450 PSIG
Applications:
- Specialty Chemicals
- Batch Chemical Process
- Reactor Feed
- Seal Water
- Shower Service
- Boiler Feed
- Condensate
- High Pressure Process
- Column Bottoms
- Hot Oil
- Column Reflux
Materials: Ductile Iron, 316SS, CD4MCu, Alloy 20, Hastelloy B and C
