SEAL LESS PUMPS

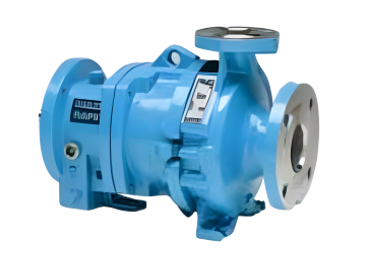

Goulds 3296 EZMAG Magnetic Drive ANSI Process
Robust, simple sealless design ideal for difficult liquids such as corrosives, pollutants, ultra-pure liquids and toxics. Meets ANSI dimensional specifications. Features a bearing cartridge for ease of maintenance and improved reliability.
- Capacities up to 159 m³/h | 700 GPM
- Heads to 213 m | 700 ft
- Temperatures to 280° C | 535° F
- Pressures to
Robust, simple sealless design ideal for difficult liquids such as corrosives, pollutants, ultra-pure liquids and toxics. Meets ANSI dimensional specifications. Features a bearing cartridge for ease of maintenance and improved reliability.
- Capacities up to 159 m³/h | 700 GPM
- Heads to 213 m | 700 ft
- Temperatures to 280° C | 535° F
- Pressures to 19 bar | 275 PSIG
Applications:
- Batch Chemical Process
- Rail Car or Tank Unloading
- Specialty Chemicals
Materials: 316SS, others upon request

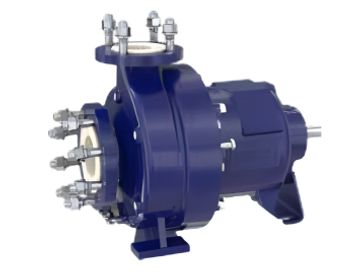

Rheinhütte FNPM Magnetic drive pump in plastic
Pumps type FNPM are horizontal, single-stage, end-suction, top-discharge centrifugal pumps with magnetic coupling, dimensioned to comply with standards EN 22858, ISO 2858, NF 44-121 and BS 5257.
The scope of application covers the wide fields of chemical processing and environmental technology where chemically aggressive fluids of various
Pumps type FNPM are horizontal, single-stage, end-suction, top-discharge centrifugal pumps with magnetic coupling, dimensioned to comply with standards EN 22858, ISO 2858, NF 44-121 and BS 5257.
The scope of application covers the wide fields of chemical processing and environmental technology where chemically aggressive fluids of various concentrations at up to 190°C are to be handled. The constant standardization of the drive components and the unique magnetic cartridge reduce the variety of parts and enable cost-saving stocking concepts. The magnet cartridge is a pre-assembled,ready-to-use unit containing all core components of the magnetic drive pump (e.g. plain bearings, impeller and containment shells). Replacement takes only a few minutes - then the old unit can be reconditioned. The cost advantage over the usual quick-coupler unit: up to 25%.
- Capacities to 350 m³/h | 1541 GPM
- Heads to 100 m | 328 ft
- Temperature ranges from -40 °C to 190 °C | -40 °F to 374 °F
- Pressures to 16 bar | 232 PSIG
Applications:
- Hot Acids
- Acetic Acid
- Chlorinated Solvents
- Chloroform
- Steel Industry
- Acetone
- Hydrofluoric Acid
- Sodium Hypochlorite
- Nitric Acid
- Amines
- Chlorine Dioxide
- Flue gas scrubber
- Waste plants
- Incineration
Materials:
- PFA
- PTFE

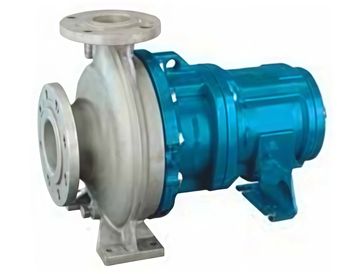

Goulds ICM ISO Metallic Magnetic Drive Process
Goulds ICM ISO Metallic Magnetic Drive Process
Goulds ICM ISO Metallic Magnetic Drive Process
The ICM pump is the optimum metallic sealless pump for process fluid services in the chemical, paper and general industries where ISO dimensions are preferred. The ICM is specifically designed to pump difficult fluids such as corrosives, high purity and toxic liquids. Its sealless, sturdy design combines with a wide variety of wet end mat
The ICM pump is the optimum metallic sealless pump for process fluid services in the chemical, paper and general industries where ISO dimensions are preferred. The ICM is specifically designed to pump difficult fluids such as corrosives, high purity and toxic liquids. Its sealless, sturdy design combines with a wide variety of wet end materials. The bearings are chemical and abrasion resistant Silicon Carbide (SSiC). Optional Dryguard™ dry-run protection can be provided.
- Capacities to 400 m³/h | 1,760 GPM
- Heads to 210 m | 685 ft at 3,500 rpm
- Temperature ranges from -40° C to 180° C | -40° F to 360° F
- Pressures to 16 bar | 232 PSIG
Applications:
- Batch Chemical Process
- Rail Car or Tank Unloading
- Specialty Chemicals
Materials: Stainless Steel, Hastelloy, Ductile Iron, Alloy 20
Rheinhütte RMKN Magnetic drive pump in metal
Goulds ICM ISO Metallic Magnetic Drive Process
Goulds ICM ISO Metallic Magnetic Drive Process
The RMKN is a horizontal, single-stage, end suction, top-discharge centrifugal pump with magnetic coupling, dimensioned to comply with standards ISO 2858. The pumps are designed to meet the technical requirements for magnetic drive pumps as determined by VDMA 24279 and DIN EN ISO 15783. The scope of application covers the wide fields of c
The RMKN is a horizontal, single-stage, end suction, top-discharge centrifugal pump with magnetic coupling, dimensioned to comply with standards ISO 2858. The pumps are designed to meet the technical requirements for magnetic drive pumps as determined by VDMA 24279 and DIN EN ISO 15783. The scope of application covers the wide fields of chemical processing and environmental technology where chemically aggressive fluids of various concentrations at up to 250°C are to be handled. For applications where the medium is kept at a constant temperature the RMKN is available in a heated version. By using heating chamber systems, the RMKN is also very suitable for difficult cases, such as conveying molten sulfur, pitch and tar.
- Capacities to 500 m³/h | 2201 GPM
- Heads to 150 m | 492 ft
- Temperature ranges from -40 °C to 250 °C | -40 °F to 482 °F
- Pressures to 16 bar | 232 PSIG
Applications:
- Aggressive, especially toxic, highly flammable, explosive or
- foul smelling media. In general all liquids that must not
- get into the atmosphere during the pumping process.
Materials:
- 12 different pure metals (Nickel and Titan), Nickel based materials and high alloy cast steels
