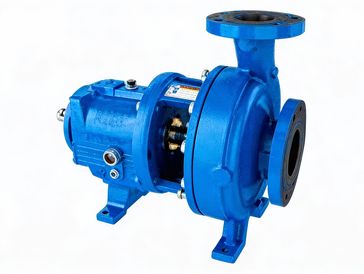

Goulds LF 3196 i-FRAME Low Flow ANSI Process
Goulds LF 3196 i-FRAME Low Flow ANSI Process
Goulds LF 3196 i-FRAME Low Flow ANSI Process
Designed specifically to provide superior performance for low flow services. Features a concentric (circular volute) casing and open radial vane impeller to eliminate hydraulic and mechanical problems at low flows. Includes power ends.
- Capacities to 50 m³/h | 220 GPM
- Heads to 282 m | 925 ft
- Temperatures to 371° C | 700° F
- Pressures to 31 bar
Designed specifically to provide superior performance for low flow services. Features a concentric (circular volute) casing and open radial vane impeller to eliminate hydraulic and mechanical problems at low flows. Includes power ends.
- Capacities to 50 m³/h | 220 GPM
- Heads to 282 m | 925 ft
- Temperatures to 371° C | 700° F
- Pressures to 31 bar | 450 PSIG
Applications:
- Specialty Chemicals
- Batch Chemical Process
- Reactor Feed
- Seal Water
- Shower Service
- Boiler Feed
- Condensate
- High Pressure Process
- Column Bottoms
- Hot Oil
- Column Reflux
Materials: Ductile Iron, 316SS, CD4MCu, Alloy 20, Hastelloy B and C

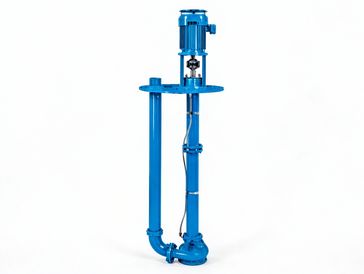

Goulds 3171 Vertical Sump and Process
Goulds LF 3196 i-FRAME Low Flow ANSI Process
Goulds LF 3196 i-FRAME Low Flow ANSI Process
The “Veteran” vertical sump
and process pump. Thousands of
installations – industrial process, sump
drainage, corrosive liquids, pollution control,
molten sulfur. Rugged, heavy construction.
Simple mounting.
- Capacities to 722 m³/h | 3,180 GPM
- Heads to 95 m | 344 ft
- Temperatures to 232° C | 450° F
- Pit Depths to 6 m | 20 ft
Applications:
- Industr
The “Veteran” vertical sump
and process pump. Thousands of
installations – industrial process, sump
drainage, corrosive liquids, pollution control,
molten sulfur. Rugged, heavy construction.
Simple mounting.
- Capacities to 722 m³/h | 3,180 GPM
- Heads to 95 m | 344 ft
- Temperatures to 232° C | 450° F
- Pit Depths to 6 m | 20 ft
Applications:
- Industrial Process
- Industrial Sump Wastes
- Molten Sulfur
- Tank Unloading
- Corrosive & Non-CorrosiveLiquids
Materials: Cast Iron, Bronze-fitted, Carbon
Steel, 316SS, Alloy 20, Hastelloy B and C, Duplex SS

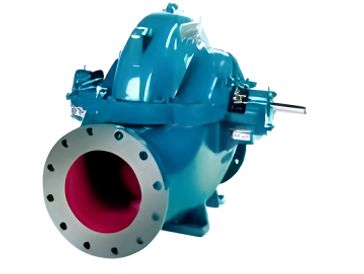

Goulds 3410 Small Capacity
Goulds LF 3196 i-FRAME Low Flow ANSI Process
Goulds 3298 Magnetic Drive ANSI Lined
- Capacities to 1,817 m3/h | 8,000 GPM
- Heads to 174 m | 570 ft
- Temperatures to 177° C | 350° F
- Pressures to 1,724 kPa | 250 PSIG
Applications:
- Process – Quench water, Stripper bottoms, Reboiler circulation, Cooling tower
- Pulp & Paper – Primary and secondary cleaner, filtrate, mill water supply shower, fan pump
- Primary Metals – Cooling water, quenc
- Capacities to 1,817 m3/h | 8,000 GPM
- Heads to 174 m | 570 ft
- Temperatures to 177° C | 350° F
- Pressures to 1,724 kPa | 250 PSIG
Applications:
- Process – Quench water, Stripper bottoms, Reboiler circulation, Cooling tower
- Pulp & Paper – Primary and secondary cleaner, filtrate, mill water supply shower, fan pump
- Primary Metals – Cooling water, quench and leaching
- Municipal – High lift, low lift, wash water, waste water, raw water
- Utilities – Cooling tower, component cooling, service water
- Marine – Bilge and ballast, cargo, cooling water, fire pump
Materials: Cast Iron / Bronze, All Iron, Cast Iron / Stainless Steel, Cast Iron / Ni-Al-Br, All Stainless Steel. Other materials available upon request. (1724 kPa)

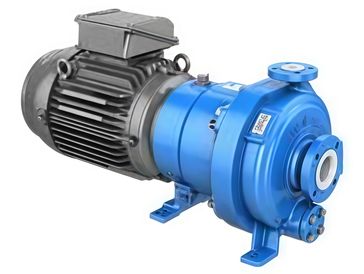

Goulds 3298 Magnetic Drive ANSI Lined
Goulds 3298 Magnetic Drive ANSI Lined
Designed to handle moderate to severe corrosives with or without solids. Sealless design provides effective alternative to pumps with mechanical seal problems. Thick linings for extended pump life.
- Capacities to 270 m³/h | 1,200 GPM
- Heads to 162 m | 500 ft
- Temperatures to 121°C | 250° F
- Pressures to 16 bar | 225 PSIG
Applications:
- Rail Car or T
Designed to handle moderate to severe corrosives with or without solids. Sealless design provides effective alternative to pumps with mechanical seal problems. Thick linings for extended pump life.
- Capacities to 270 m³/h | 1,200 GPM
- Heads to 162 m | 500 ft
- Temperatures to 121°C | 250° F
- Pressures to 16 bar | 225 PSIG
Applications:
- Rail Car or Tank Unloading
- Batch Chemical Process
- Specialty Chemicals
- Column Reflux or Bottoms
- Reactor Feed
Lining Material: ETFE
%20Vertical%20Turbine.png/:/rs=w:365,h:274.4360902255639,cg:true,m/cr=w:365,h:274.4360902255639)
Goulds VIT (VS1) Vertical Turbine
Goulds VIT (VS1) Vertical Turbine
A wide range of hydraulic conditions allows meeting requirements of virtually every pumping service. Designed to meet custom specifications of the user. Model VIT can-type turbine meets API 610 specifications.
- Capacities to 15,900 m3/h | 70,000 GPM
- Heads to 1,067 m | 3,500 ft
- Pressures to 176 kg/cm2 | 2,500 psi
- Bowl sizes from 152.4 mm to 1,4
A wide range of hydraulic conditions allows meeting requirements of virtually every pumping service. Designed to meet custom specifications of the user. Model VIT can-type turbine meets API 610 specifications.
- Capacities to 15,900 m3/h | 70,000 GPM
- Heads to 1,067 m | 3,500 ft
- Pressures to 176 kg/cm2 | 2,500 psi
- Bowl sizes from 152.4 mm to 1,400 mm | 6” to 55”
- Temperatures to 204°C | 400° F
- Horsepower to 3,730 KW | 5,000 HP
Applications:
- Cooling Water
- Seawater & River Water Intake
- Industrial Process Pumps
- Utility Circulating Water
- Condenser Circulating Water Pumps
- Fire Service
- Reclaimed Water
Materials: Any Machinable Alloy
