VERTICAL
%20Vertical%20Turbine.png/:/rs=w:365,h:274.4360902255639,cg:true,m/cr=w:365,h:274.4360902255639)

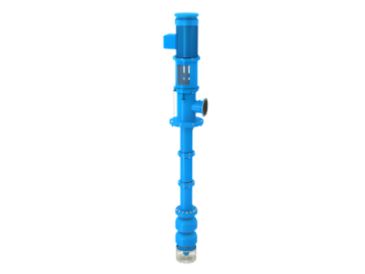

Goulds VIT (VS1) Vertical Turbine
A wide range of hydraulic conditions allows meeting requirements of virtually every pumping service. Designed to meet custom specifications of the user. Model VIT can-type turbine meets API 610 specifications.
- Capacities to 15,900 m3/h |70,000 GPM
- Heads to 1,067 m | 3,500 ft
- Pressures to 176 kg/cm2 | 2,500 psi
- Bowl sizes from 152.4 mm to 1,40
A wide range of hydraulic conditions allows meeting requirements of virtually every pumping service. Designed to meet custom specifications of the user. Model VIT can-type turbine meets API 610 specifications.
- Capacities to 15,900 m3/h |70,000 GPM
- Heads to 1,067 m | 3,500 ft
- Pressures to 176 kg/cm2 | 2,500 psi
- Bowl sizes from 152.4 mm to 1,400 mm | 6” to 55”
- Temperatures to 204°C | 400° F
- Horsepower to 3,730 KW | 5,000 HP
Applications:
- Cooling Water
- Seawater & River Water Intake
- Industrial Process Pumps
- Utility Circulating Water
- Condenser Circulating Water Pumps
- Fire Service
- Reclaimed Water
Materials: Any Machinable Alloy
%20Vertical%20Can-Type.png/:/cr=t:0%25,l:8.24%25,w:83.51%25,h:100%25/rs=w:365,h:274.4360902255639,cg:true)

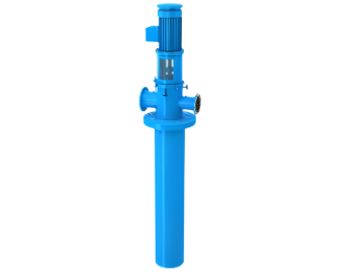

Goulds VIC (VS6) Vertical Can-Type
A wide range of hydraulic conditions allows meeting requirements of virtually every pumping service. Designed to meet custom specifications of the user. Model VIC can-type turbine meets API 610 specifications.
- Capacities to 15,900 m3/h | 70,000 GPM
- Heads to 1,067 m | 3,500 ft
- Pressures to 176 kg/cm2 | 2,500 psi
- Bowl sizes from 152.4 mm to 1,
A wide range of hydraulic conditions allows meeting requirements of virtually every pumping service. Designed to meet custom specifications of the user. Model VIC can-type turbine meets API 610 specifications.
- Capacities to 15,900 m3/h | 70,000 GPM
- Heads to 1,067 m | 3,500 ft
- Pressures to 176 kg/cm2 | 2,500 psi
- Bowl sizes from 152.4 mm to 1,400 mm | 6” to 55”
- Temperatures to 204°C | 400° F
- Horsepower to 3730 KW | 5,000 HP
Applications:
- Pipeline Booster
- Product Transfer, Refinery Blending
- Injection-Secondary Recovery
- Chemical Transfer
- Boiler Feed
- Condensate
- Cryogenics
- LNG Transfer
- Light Hydrobarbons
- Water Services
Materials: Any Machinable Alloy
%20Vertical%20Multistage%20Low%20Flow.png/:/cr=t:0%25,l:8.24%25,w:83.51%25,h:100%25/rs=w:365,h:274.4360902255639,cg:true)

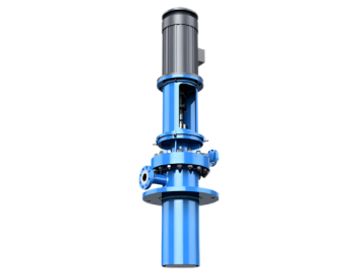

Goulds VICR (VS6) Vertical Multistage Low Flow, High Head
Goulds VICR (VS6) Vertical Multistage Low Flow, High Head
A wide range of hydraulic conditions with a competitive advantage due to its compact design and reduced number of stages from the radial impeller configuration that can produce more head per stage.
Model VICR can vertical multistage low flow, high head meets API 610 specifications.
- Capacities to 636 m3/h | 2,800 GPM
- Heads to 1,372 m | 4,50
A wide range of hydraulic conditions with a competitive advantage due to its compact design and reduced number of stages from the radial impeller configuration that can produce more head per stage.
Model VICR can vertical multistage low flow, high head meets API 610 specifications.
- Capacities to 636 m3/h | 2,800 GPM
- Heads to 1,372 m | 4,500 ft
- Temperatures to 204°C | 400° F
- Discharge flange sizes from 38 mm to 203 mm | 1.5” to 8”
- Powers to 3,000 KW | 4,000 hp
Applications:
- Pentane, Propane, LPG and other light hydrocarbons with specific gravities ranging from 0.2 to 1.0
- Hotwater applications such as Boiler feed water
